220-mva-GSU-Transformer-138-kv-Grdy-19-5-17-5-kv(Auction ID: 5519, End Time : 05/05/2021 03:42:12 am)

220 mva GSU Transformer 138 kv Grdy -19.5/17.5 kv

Start Time:05/26/2020 14:29:56 CDT

End Time:05/05/2021 03:42:12 CDT

Location: Georgia, 30115

Country: USA

Time Left: Time Ended

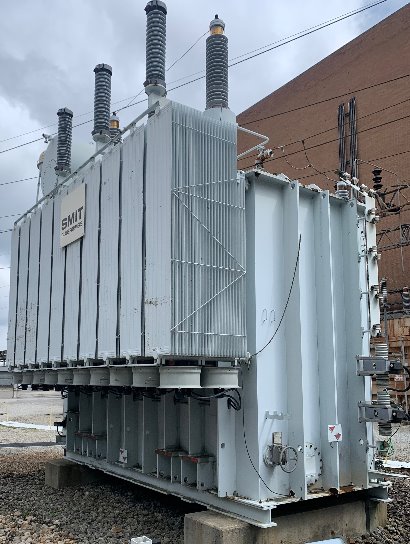

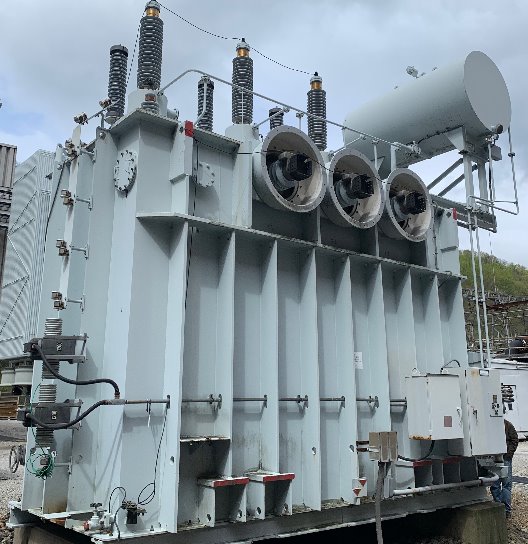

ONE (1) Unused SMITH 135/180/224 MVA Generator Step up transformer, 3 phase, 60 Hz, Class OA/FA/FA, 65 Deg. C rise , 19.23% Impedance at 19.5 kv or 18.70% impedance at 17.5kv, Copper windings High Voltage: 138000GRDY BIL: 550 KV Low Voltage : 19500 Delta or 17500 Delta BIL: 150 KV High voltage – Neutral: BIL: 150 KV HV TAPS: 145000-140000-138000-135000-130000 LV TAPS: 19500-17500 Total Weight: 385,412 LBS. Core & coils: 230,600 LBS. TANK & FITTINGS: 167,797 LBS. Oil 10,075 gallons 72,694 LBS Shipping Weight: 284,160 LBS. Year Built 2000 Unused ready to ship

Power	Phase Type : Three
Capacity	KVA : 224000		MVA : 224
Voltages	Pri-Voltage : 138000Y	Sec Voltage : 19500 -17500 D	Taps : With Taps 2x2.5% Above and Below
Other	Impedance : 19.23%
Record	Serial Num : -	Manufacturer : Smith	Part Number : -	Stock Number : T13
Dimensions	Height :	Width :	Depth : 0
